Preprocessing Dual Energy Carbonate CT Data#
Before running the Monte Carlo inversion, we need to perform some pre-configurations. In this tutorial, we will process this data directly within the Jupyter Notebook, in a parallel MPI environment using ipyparallel.
Let’s first create a cluster with a set of 5 MPI engines:
[1]:
import ipyparallel as ipp
# Create an MPI cluster with 5 engines
cluster = ipp.Cluster(engines="mpi", n=5)
# Start and connect to the cluster
rc = cluster.start_and_connect_sync()
# Enable IPython magics for parallel processing
rc[:].activate()
Starting 5 engines with <class 'ipyparallel.cluster.launcher.MPIEngineSetLauncher'>
This will enable the %%px cell magic, which allows RockVerse to perform parallel processing interactively within this Jupyter notebook.
Let’s create the dual energy group and import the raw images we downloaded from the Digital Rocks Portal:
[2]:
%%px --block --group-outputs=type
import matplotlib.pyplot as plt
from IPython.display import display
import rockverse as rv
# Create the Dual Energy CT group
dectgroup = rv.dualenergyct.create_group(
store='/path/to/dual_energy_ct/C04B21',
overwrite=True)
# Copy the low energy CT image
dectgroup.copy_image(
image=rv.open('/path/to/imported/dual_energy_carbonate/C04B21Raw100keV'),
path='lowECT',
overwrite=True)
# Copy the high energy CT image
dectgroup.copy_image(
image=rv.open('/path/to/imported/dual_energy_carbonate/C04B21Raw140keV'),
path='highECT',
overwrite=True)
[output:0]
[output:0]

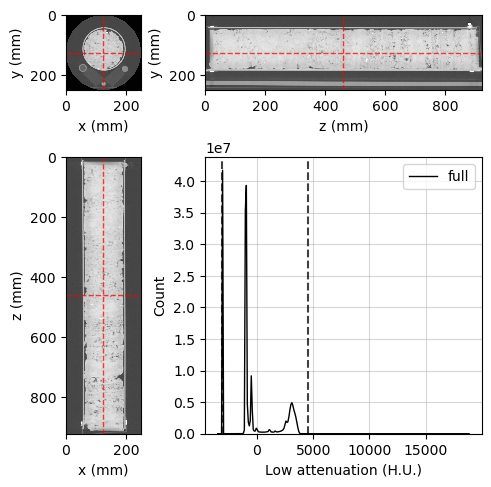

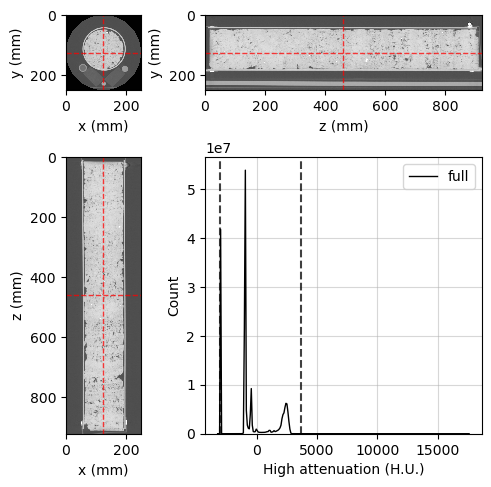

Now, let’s take a quick look at the data using the orthogonal viewer:
[3]:
%%px --block --group-outputs=type
# Create orthogonal viewers for low and high energy images
lowE_viewer = rv.OrthogonalViewer(image=dectgroup.lowECT)
highE_viewer = rv.OrthogonalViewer(image=dectgroup.highECT)
#Each process will create it's own repeated image, let's close all but rank zero:
if rv.config['MPI']['mpi_rank'] != 0:
plt.close(lowE_viewer.figure)
plt.close(highE_viewer.figure)
[output:0]
[output:0]
[output:0]
[output:0]
[output:0]
[output:0]
Building the segmentation image#
A segmentation image is needed to inform RockVerse about the spatial location of the standard materials. While the segmentation image is not available in the Digital Rocks Portal, the rock sample and the standard materials are fairly aligned with the image’s z-axis. Let’s quickly build a segmentation image with RockVerse’s cylindrical regions. A little trial and error is all it takes in this case:

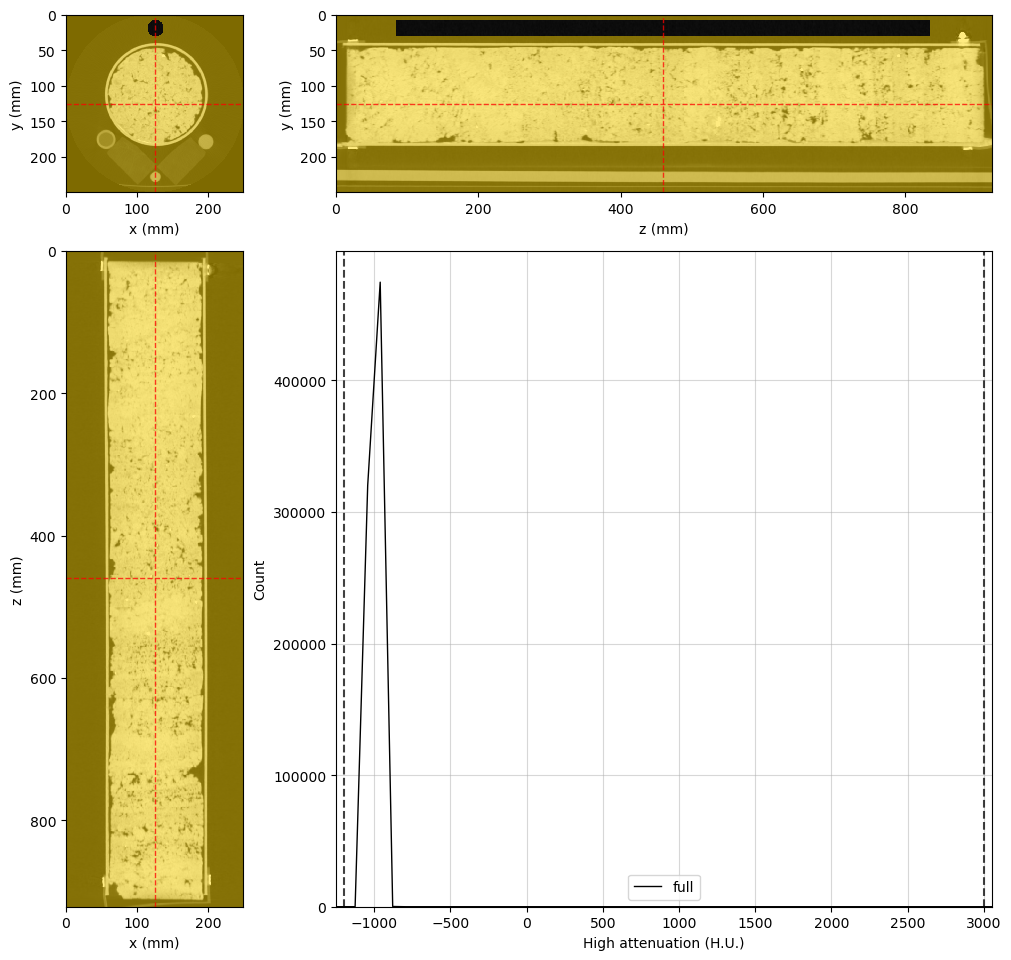

Air#
[4]:
%%px --block --group-outputs=type
#Adjusting viewer properties will help us in this task

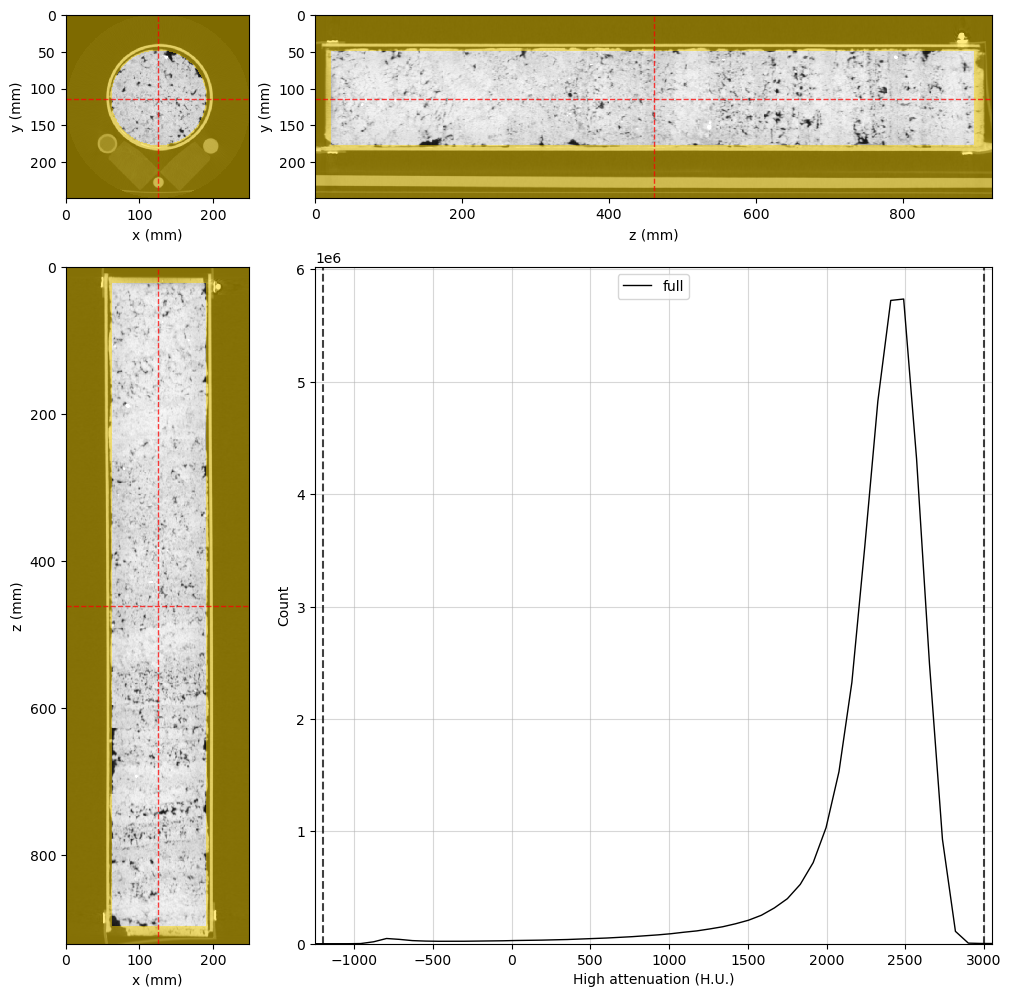

highE_viewer.figure.set_size_inches(10, 10)
highE_viewer.update_image_dict(clim=(-1200, 3000))
highE_viewer.mask_color = 'gold'
highE_viewer.mask_alpha = 0.5
#This is the final cylindrical region for probing air attenuation
air_region = rv.region.Cylinder(p=(126, 20, 461), v=(0, 0, 1), r=10, l=750)
# Set the region in the viewer and visualize the result
highE_viewer.region = air_region
#Changing region rebuilds the histogram. Let's set the scale again
highE_viewer.ax_histogram.set_xlim(-1250, 3050)
# Only display the figure for rank 0
if rv.config['MPI']['mpi_rank'] == 0:
display(highE_viewer.figure)
[output:0]
[output:0]
[output:0]
Water#
[5]:
%%px --block --group-outputs=type
#Final water region

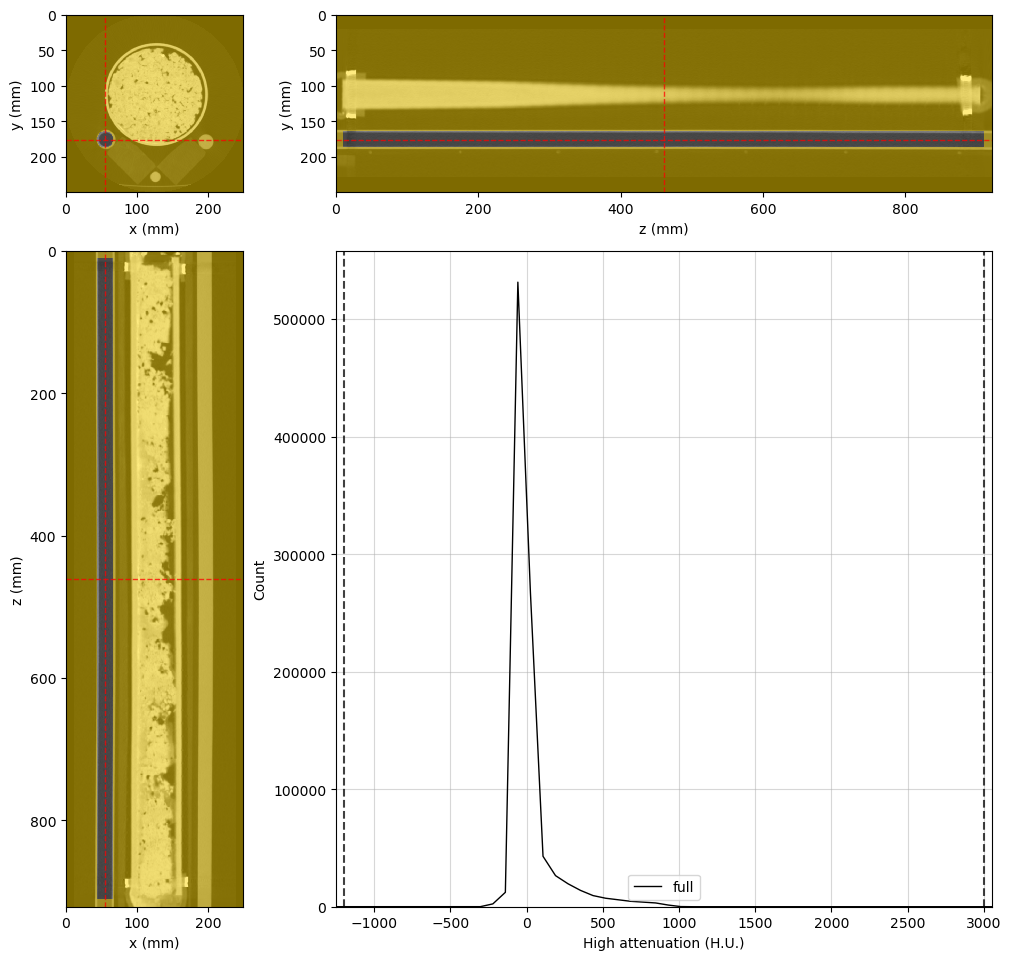

water_region = rv.region.Cylinder(p=(55, 176.2, 461), v=(0, 0, 1), r=10, l=900)
#Adjust the viewer and display for rank 0
highE_viewer.region = water_region
highE_viewer.ref_point = water_region.p
highE_viewer.ax_histogram.set_xlim(-1250, 3050)
if rv.config['MPI']['mpi_rank'] == 0:
display(highE_viewer.figure)
[output:0]
[output:0]
[output:0]
Teflon#
[6]:
%%px --block --group-outputs=type
#Final teflon region

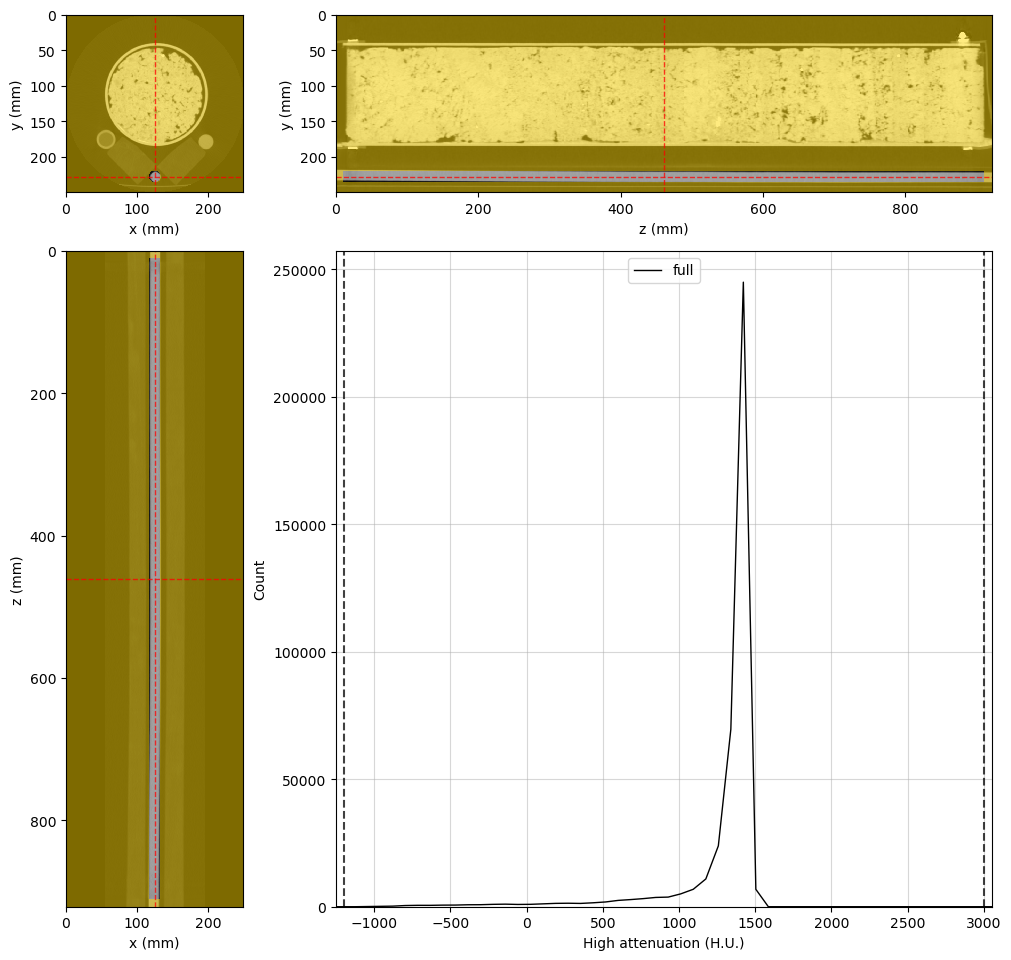

teflon_region = rv.region.Cylinder(p=(124.7, 228, 461), v=(0, 0, 1), r=6.5, l=900)
#Adjust the viewer and display for rank 0
highE_viewer.region = teflon_region
highE_viewer.ref_point = teflon_region.p
highE_viewer.ax_histogram.set_xlim(-1250, 3050)
if rv.config['MPI']['mpi_rank'] == 0:
display(highE_viewer.figure)
[output:0]
[output:0]
[output:0]
Silica#
[7]:
%%px --block --group-outputs=type
#Final silica region
silica_region = rv.region.Cylinder(p=(196, 179, 461), v=(0, 0, 1), r=9, l=900)
#Adjust the viewer and display for rank 0
highE_viewer.region = silica_region
highE_viewer.ref_point = silica_region.p
highE_viewer.ax_histogram.set_xlim(-1250, 3050)
if rv.config['MPI']['mpi_rank'] == 0:
display(highE_viewer.figure)
[output:0]
[output:0]
[output:0]
Rock sample#
[8]:
%%px --block --group-outputs=type
#Final rock region
rock_region = rv.region.Cylinder(p=(126, 114, 461), v=(0, 0, 1), r=63, l=875)
#Adjust the viewer and display for rank 0
highE_viewer.region = rock_region
highE_viewer.ref_point = rock_region.p
highE_viewer.ax_histogram.set_xlim(-1250, 3050)
if rv.config['MPI']['mpi_rank'] == 0:
display(highE_viewer.figure)
[output:0]
[output:0]
[output:0]

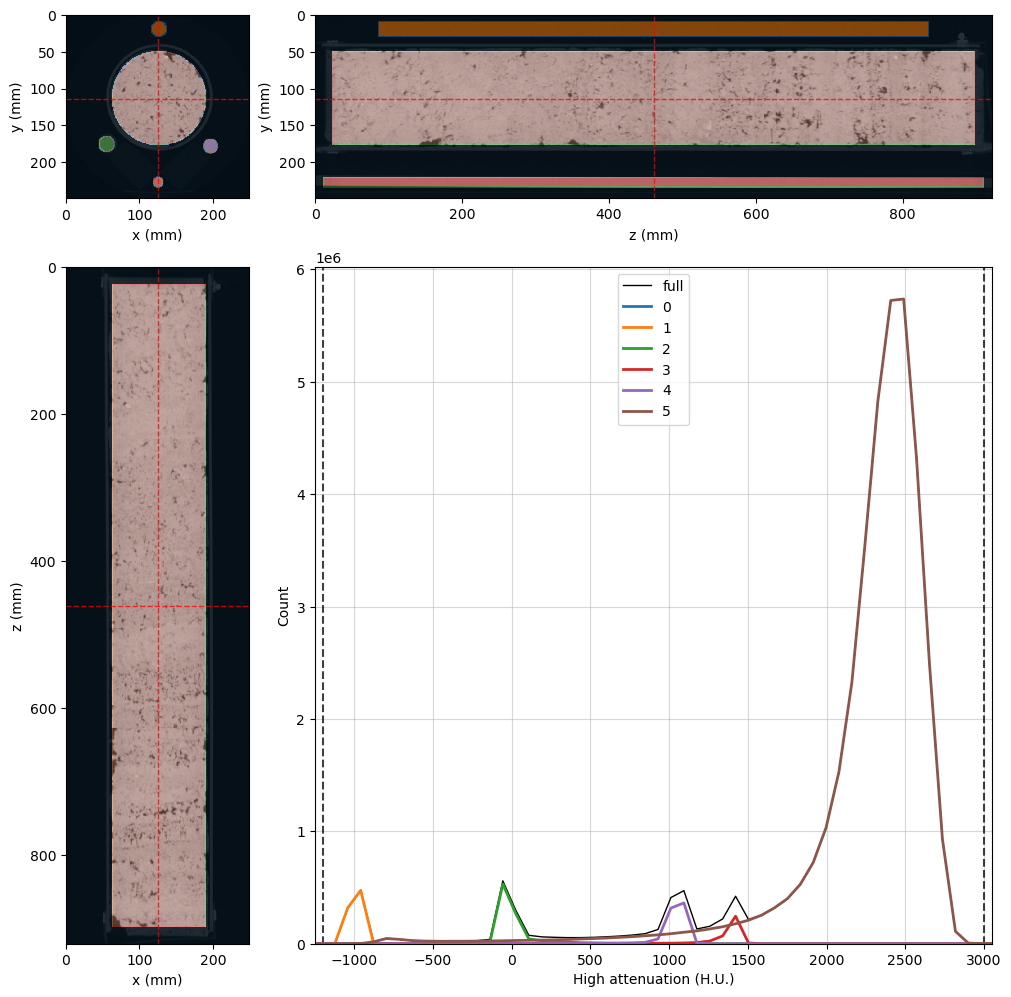

Combined segmentation image#
Now, we can use these regions to create the final segmentation image:
[9]:
%%px --block --group-outputs=type
# Create the segmentation voxel image inside the dual energy group
dectgroup.create_segmentation(fill_value=0, overwrite=True)
# Use the VoxelImage math method to assign each region
dectgroup.segmentation.math(value=1, op='set', region=air_region) #Air
dectgroup.segmentation.math(value=2, op='set', region=water_region) #Water
dectgroup.segmentation.math(value=3, op='set', region=teflon_region) #Teflon
dectgroup.segmentation.math(value=4, op='set', region=silica_region) #Silica
dectgroup.segmentation.math(value=5, op='set', region=rock_region) #Rock sample
#Adjust the viewer and display for rank 0

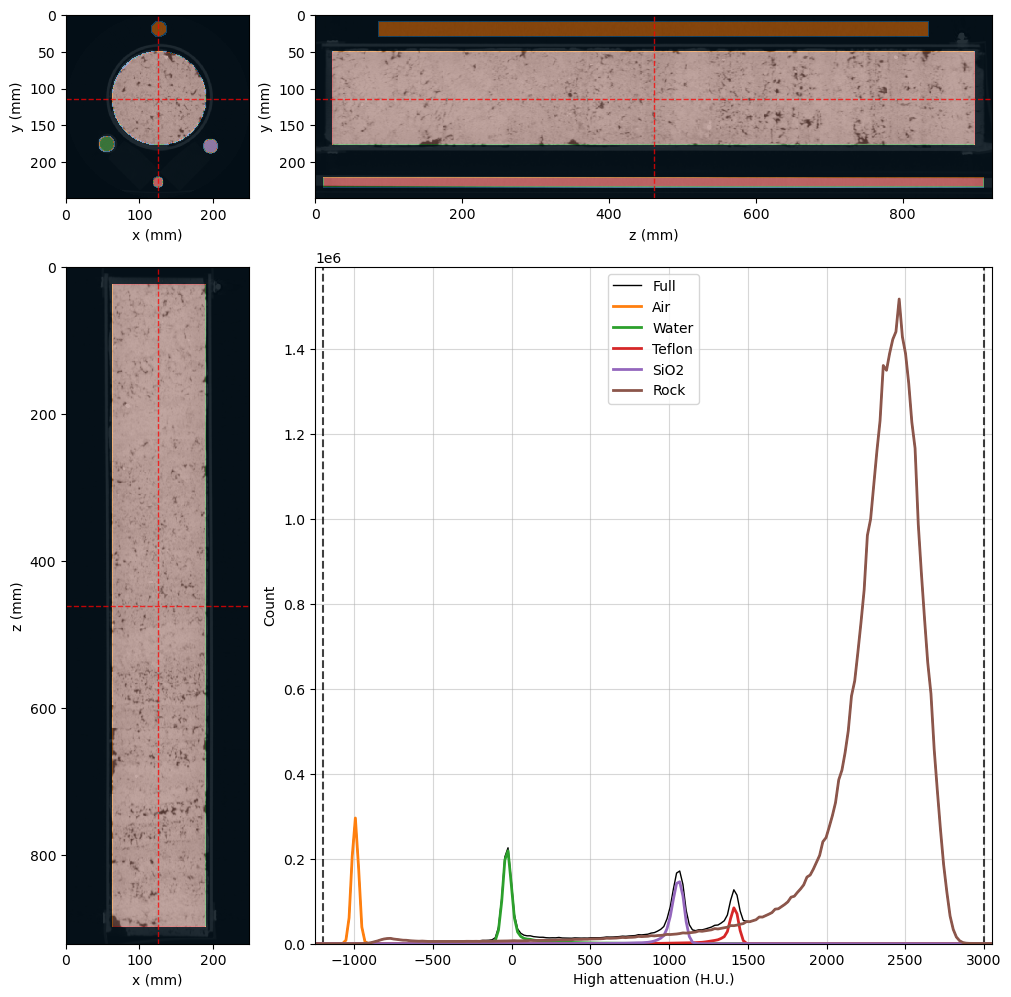

highE_viewer.region = None
highE_viewer.segmentation = dectgroup.segmentation
highE_viewer.ref_point = rock_region.p
highE_viewer.ax_histogram.set_xlim(-1250, 3050)
if rv.config['MPI']['mpi_rank'] == 0:
display(highE_viewer.figure)
[output:0]
[output:0]
[output:0]
[output:0]
[output:0]
[output:0]
[output:0]
[output:0]
[output:0]
[output:0]
[output:0]

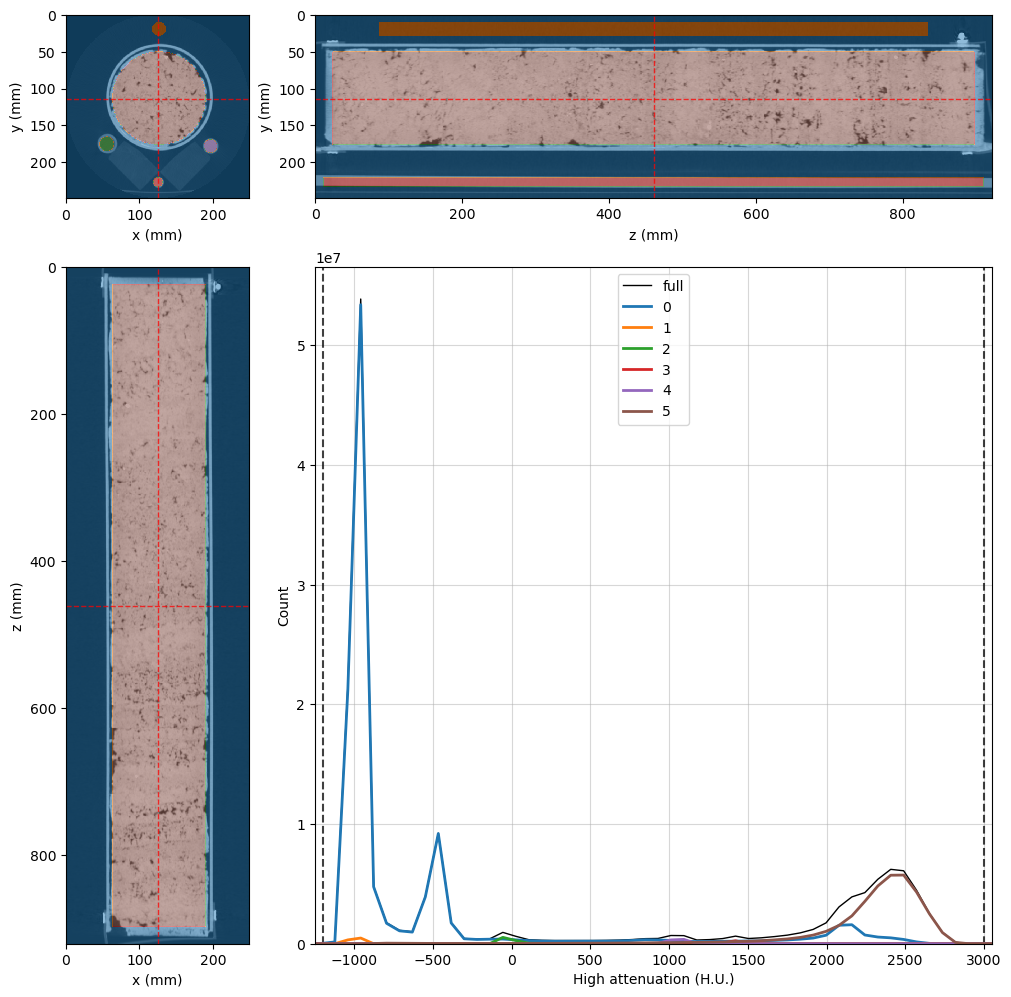

Mask Image#
It is a good practice to save time in the Monte Carlo inversion by masking out voxels for which we are not interested in the results. While we cannot assign regions to DualEnergyCT groups, we can create an arbitrary mask voxel image to inform RockVerse which voxels should be ignored. In our case, phase 0 in our segmentation image represents the regions we want to exclude from our inversion:
[10]:
%%px --block --group-outputs=type
#Create the empty mask
dectgroup.create_mask(fill_value=False, overwrite=True)
#Use VoxelImage math method to set mask to True where segmentation is 0
dectgroup.mask.math(value=True,
op='set',
segmentation=dectgroup.segmentation,
phases=(0,))
#Adjust the viewer and display for rank 0
highE_viewer.mask = dectgroup.mask
highE_viewer.mask_color = 'k'
highE_viewer.mask_alpha = 0.75
highE_viewer.ax_histogram.set_xlim(-1250, 3050)
if rv.config['MPI']['mpi_rank'] == 0:
display(highE_viewer.figure)
[output:0]
[output:0]
[output:0]
[output:0]
[output:0]
The black voxels in the image above will be ignored during the Monte Carlo inversion.
Now that we are satisfied with the segmentation and mask, we need to calculate a more detailed histogram, as the histogram counts will serve as the basis for calculating the probability density functions for the X-ray attenuation values in the standard materials. Once again, some testing led to the final choice of \(2^{10}\) bins.
Let’s update our viewer one last time:
[11]:
%%px --block --group-outputs=type
#Set the number of histogram bins
highE_viewer.histogram_bins = 2**10
#Fix the scale, as the histogram was rebuilt
highE_viewer.ax_histogram.set_xlim(-1250, 3050)
#Write the material names in the histogram legend
highE_viewer.ax_histogram.legend(
[
highE_viewer.histogram_lines['full'],
highE_viewer.histogram_lines['1'],
highE_viewer.histogram_lines['2'],
highE_viewer.histogram_lines['3'],
highE_viewer.histogram_lines['4'],
highE_viewer.histogram_lines['5'],
], [
'Full',
'Air',
'Water',
'Teflon',
'SiO2',
'Rock'
]
)
#Show figire for rank 0
if rv.config['MPI']['mpi_rank'] == 0:
display(highE_viewer.figure)
[output:0]
[output:0]
[output:0]
[output:0]
Run the preprocessing step#
Now we are ready to set the processing parameters and run the pre-processing step. Our little cluster with 5 MPI processes is still enough for this task.
[12]:
%%px --block --group-outputs=type
# Set the number of histogram bins as previously decided
dectgroup.histogram_bins = 2**10
# Fill in the calibration materials dictionaries
dectgroup.calibration_material0['description'] = 'Air'
dectgroup.calibration_material0['segmentation_phase'] = 1
dectgroup.calibration_material0['lowE_gaussian_center_bounds'] = [-1050, -950]
dectgroup.calibration_material0['highE_gaussian_center_bounds'] = [-1050, -950]
dectgroup.calibration_material1['description'] = 'Water'
dectgroup.calibration_material1['segmentation_phase'] = 2
dectgroup.calibration_material1['composition'] = {'H': 2, 'O': 1}
dectgroup.calibration_material1['bulk_density'] = 1
dectgroup.calibration_material1['lowE_gaussian_center_bounds'] = [-100, 100]
dectgroup.calibration_material1['highE_gaussian_center_bounds'] = [-100, 100]
dectgroup.calibration_material2['description'] = 'SiO2'
dectgroup.calibration_material2['segmentation_phase'] = 3
dectgroup.calibration_material2['composition'] = {'Si': 1, 'O': 2}
dectgroup.calibration_material2['bulk_density'] = 2.2
dectgroup.calibration_material2['lowE_gaussian_center_bounds'] = [1550, 1700]
dectgroup.calibration_material2['highE_gaussian_center_bounds'] = [1300, 1500]
dectgroup.calibration_material3['description'] = 'Teflon'
dectgroup.calibration_material3['segmentation_phase'] = 4
dectgroup.calibration_material3['composition'] = {'C': 2, 'F': 4}
dectgroup.calibration_material3['bulk_density'] = 2.2
dectgroup.calibration_material3['lowE_gaussian_center_bounds'] = [1000, 1200]
dectgroup.calibration_material3['highE_gaussian_center_bounds'] = [1000, 1100]
# Call the preprocess method
dectgroup.preprocess()
[output:0]
[output:1]
[output:2]
[output:3]
[output:0]
[output:0]
[output:0]
[output:0]
[output:0]
[output:0]
[stdout:0] [2025-01-10 17:47:27] Gaussian coefficients for calibration histograms:
A_lowE mu_lowE sigma_lowE A_highE mu_highE sigma_highE
Calibration material 0 289996.000246 -998.709782 23.171523 295984.001208 -995.363426 21.752511
Calibration material 1 182410.932712 -34.332426 34.220852 218833.963498 -28.880517 28.371563
Calibration material 2 60297.000982 1627.787462 38.406920 84530.971634 1411.262199 28.102848
Calibration material 3 119368.999974 1110.598387 48.387580 145789.001821 1054.907940 37.473448
[output:0]
Appraisal#
Let’s take a look at the preprocessing results. This time, we will work locally instead of in the ipyparallel cluster, so we need to load the libraries and the DECT group again.
[61]:
# Note that we are not using the %%px cell magic anymore!
# Now the process will run locally, so we nee to start over
import matplotlib.pyplot as plt
import numpy as np
import rockverse as rv
#Load the DECT group
dectgroup = rv.open(r'/path/to/dual_energy_ct/C04B21')
The results can be accessed through the following attributes:
calibration_gaussian_coefficients: histogram fitting parameters,lowEhistogram: a Pandas DataFrame with the histogram values for the low energy image,highEhistogram: a Pandas DataFrame with the histogram values for the high energy image.
Let’s take a look at each one of them:
[186]:
print(dectgroup.calibration_gaussian_coefficients)
A_lowE mu_lowE sigma_lowE A_highE \
Calibration material 0 289996.000246 -998.709782 23.171523 295984.001208
Calibration material 1 182410.932712 -34.332426 34.220852 218833.963498
Calibration material 2 60297.000982 1627.787462 38.406920 84530.971634
Calibration material 3 119368.999974 1110.598387 48.387580 145789.001821
mu_highE sigma_highE
Calibration material 0 -995.363426 21.752511
Calibration material 1 -28.880517 28.371563
Calibration material 2 1411.262199 28.102848
Calibration material 3 1054.907940 37.473448
[187]:
print(dectgroup.lowEhistogram)
bin_centers full 0 1 2 3 4 5
0 -3013.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0
1 -2992.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0
2 -2971.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
3 -2949.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0
4 -2928.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
... ... ... ... ... ... ... ... ...
1018 18809.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
1019 18830.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0
1020 18852.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
1021 18873.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0
1022 18895.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
[1023 rows x 8 columns]
[188]:
print(dectgroup.highEhistogram)
bin_centers full 0 1 2 3 4 5
0 -3014.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
1 -2994.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
2 -2974.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
3 -2954.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
4 -2933.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0
... ... ... ... ... ... ... ... ...
1018 17555.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0
1019 17576.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
1020 17596.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
1021 17616.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
1022 17636.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0
[1023 rows x 8 columns]
[189]:
print(dectgroup.lowE_inversion_coefficients)
CT_0 CT_1 CT_2 CT_3 Z_1 Z_2 \
0 -985.170479 -37.306378 1666.372996 1122.924137 6.527659 10.766077
1 -964.931235 5.535268 1648.049931 1113.200129 6.786124 10.900328
2 -1012.908623 -13.513897 1611.467335 1107.138637 6.771209 10.891468
3 -1046.961518 -19.173814 1644.411155 1080.709431 7.077239 11.115299
4 -997.138394 -62.216043 1584.344279 1097.574787 6.338426 10.687342
... ... ... ... ... ... ...
49995 -984.605957 -48.646933 1712.478114 1130.728745 6.512674 10.759343
49996 -1021.160551 -16.025717 1585.980803 1174.808622 6.200749 10.637237
49997 -987.181841 -36.027791 1683.475938 1119.689917 6.600320 10.800156
49998 -1008.123921 9.894383 1608.108562 1077.615564 7.131072 11.167076
49999 -1002.515727 -26.023097 1647.234131 1148.366294 6.453079 10.733473
Z_3 A B n err
0 8.240989 248.333397 108.118548 0.918302 3.410605e-13
1 8.276098 480.991975 36.428127 1.242327 1.136868e-13
2 8.273825 525.982434 36.225699 1.220867 2.784747e-13
3 8.329615 681.057044 7.672823 1.769401 2.273737e-13
4 8.219675 123.732932 187.017432 0.728811 1.136868e-13
... ... ... ... ... ...
49995 8.239188 171.690698 123.847695 0.902094 0.000000e+00
49996 8.205802 181.165753 238.764500 0.608124 1.136868e-13
49997 8.250041 293.043788 85.348160 1.000375 2.542115e-13
49998 8.342090 713.157928 4.889173 1.898896 1.607775e-13
49999 8.232232 267.116168 127.944753 0.839830 1.136868e-13
[50000 rows x 11 columns]
[190]:
print(dectgroup.highE_inversion_coefficients)
CT_0 CT_1 CT_2 CT_3 Z_1 Z_2 \
0 -972.119692 -61.855281 1373.633630 1009.935635 6.196998 10.635942
1 -995.163422 -9.659287 1437.533121 1034.317253 6.845608 10.937364
2 -995.733691 -29.692926 1423.685461 1064.376054 6.309353 10.676320
3 -1016.058563 -29.976892 1348.716677 996.951784 6.798889 10.908042
4 -972.056570 -15.896895 1369.379369 1071.652142 5.978736 10.565857
... ... ... ... ... ... ...
49995 -997.485334 -9.747728 1439.923330 1032.932630 6.874736 10.956576
49996 -975.594496 -7.938519 1442.023101 1098.018626 6.180434 10.630262
49997 -991.763846 -20.630767 1418.271162 1052.415116 6.480210 10.745076
49998 -994.250103 11.222071 1430.763494 1075.827878 6.670365 10.835499
49999 -1035.331221 -76.033176 1392.428911 1022.440473 6.300023 10.672835
Z_3 A B n err
0 8.205440 178.818167 212.650412 0.605003 1.136868e-13
1 8.285538 634.354970 19.533899 1.332205 2.784747e-13
2 8.216645 353.001570 141.849902 0.702275 1.136868e-13
3 8.278073 657.363074 20.589110 1.261023 1.136868e-13
4 8.185586 135.086831 333.154205 0.435747 2.542115e-13
... ... ... ... ... ...
49995 8.290396 645.997363 17.075158 1.378949 2.542115e-13
49996 8.203850 266.362439 206.163751 0.591309 2.542115e-13
49997 8.235359 471.323907 79.711312 0.867754 0.000000e+00
49998 8.259326 619.915536 36.420149 1.085593 2.784747e-13
49999 8.215684 318.469022 152.142387 0.693886 2.542115e-13
[50000 rows x 11 columns]

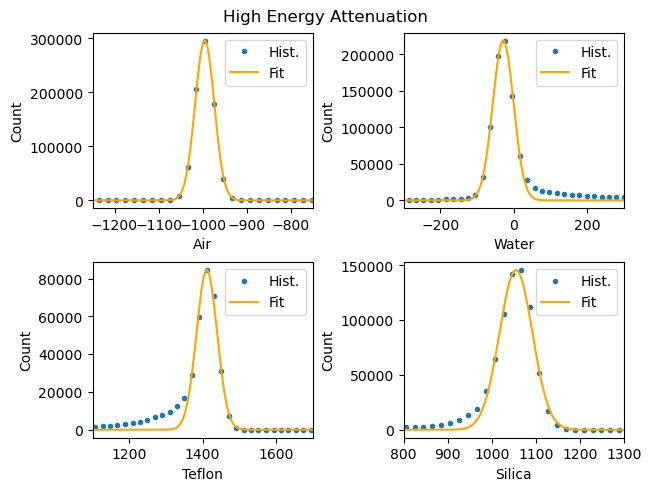

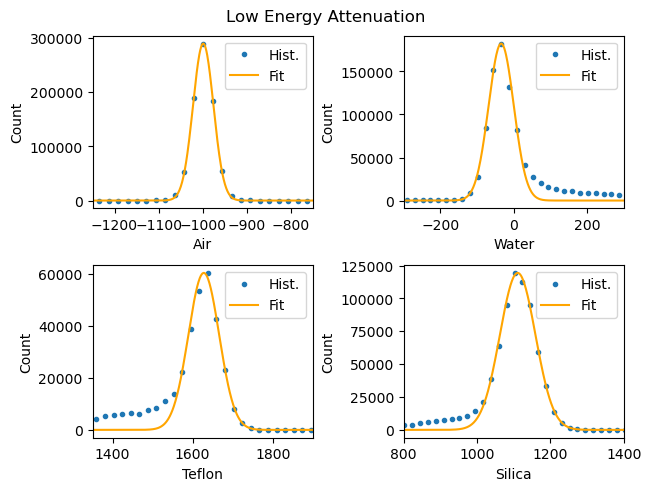

Let’s write some code to retrieve these parameters and display some plots:
[191]:
def gaussian(x, A, mu, sigma):
return A*np.exp(-0.5*((x-mu)/sigma)**2)
fig1, ax1 = plt.subplots(2, 2, layout='constrained')
fig2, ax2 = plt.subplots(2, 2, layout='constrained')
fig1.suptitle('Low Energy Attenuation')
fig2.suptitle('High Energy Attenuation')
for hist, ax, mode in zip((dectgroup.lowEhistogram, dectgroup.highEhistogram),
(ax1, ax2),
('low', 'high')):
for k, (i, j, xlb) in enumerate(zip((0, 0, 1, 1),
(0, 1, 0, 1),
('Air', 'Water', 'Teflon', 'Silica'))):
ax[i][j].plot(hist['bin_centers'], hist[str(k+1)], '.', label='Hist.')
xlim = dectgroup.__getattribute__(f'calibration_material{k}')[f'{mode}E_gaussian_center_bounds']
xlim[0] -= 200
xlim[1] += 200
x = np.linspace(*xlim, 500)
y = gaussian(
x,
A=dectgroup.calibration_gaussian_coefficients[f'A_{mode}E'].iloc[k],
mu=dectgroup.calibration_gaussian_coefficients[f'mu_{mode}E'].iloc[k],
sigma=dectgroup.calibration_gaussian_coefficients[f'sigma_{mode}E'].iloc[k])
ax[i][j].plot(x, y, color='orange', label='Fit')
ax[i][j].set_xlim(*xlim)
ax[i][j].set_xlabel(xlb)
ax[i][j].set_ylabel('Count')
ax[i][j].legend()
[192]:

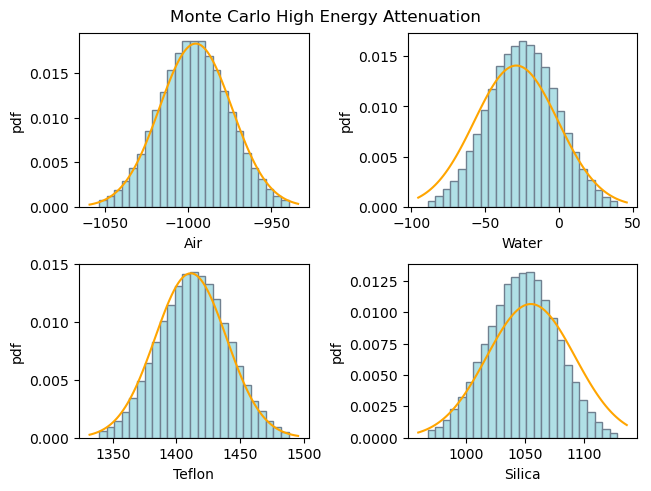

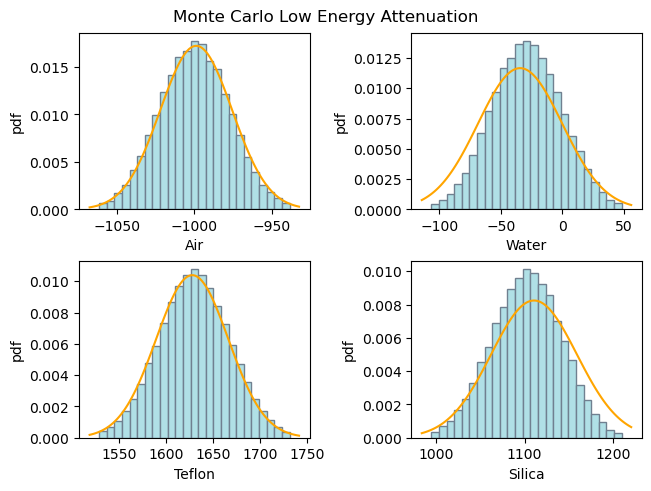

def gaussian_pdf(x, mu, sigma):
return 1/np.sqrt(2*np.pi)/sigma*np.exp(-0.5*((x-mu)/sigma)**2)
fig1, ax1 = plt.subplots(2, 2, layout='constrained')
fig2, ax2 = plt.subplots(2, 2, layout='constrained')
fig1.suptitle('Monte Carlo Low Energy Attenuation')
fig2.suptitle('Monte Carlo High Energy Attenuation')
for ax, coef, mode in zip((ax1, ax2),
(dectgroup.lowE_inversion_coefficients,
dectgroup.highE_inversion_coefficients),
('low', 'high')):
for k, (i, j, xlb) in enumerate(zip((0, 0, 1, 1),
(0, 1, 0, 1),
('Air', 'Water', 'Teflon', 'Silica'))):
ax[i][j].hist(coef[f'CT_{k}'],
bins=25,
density=True,
facecolor='powderblue',
edgecolor='slategrey',
label='Hist.')
ax[i][j].set_xlabel(xlb)
ax[i][j].set_ylabel('pdf')
x = np.linspace(*ax[i][j].get_xlim(), 100)
mu = dectgroup.calibration_gaussian_coefficients[f'mu_{mode}E'].iloc[k],
sigma = dectgroup.calibration_gaussian_coefficients[f'sigma_{mode}E'].iloc[k]
y = gaussian_pdf(x, mu, sigma)
ax[i][j].plot(x, y, color='orange', label='pdf')
[193]:

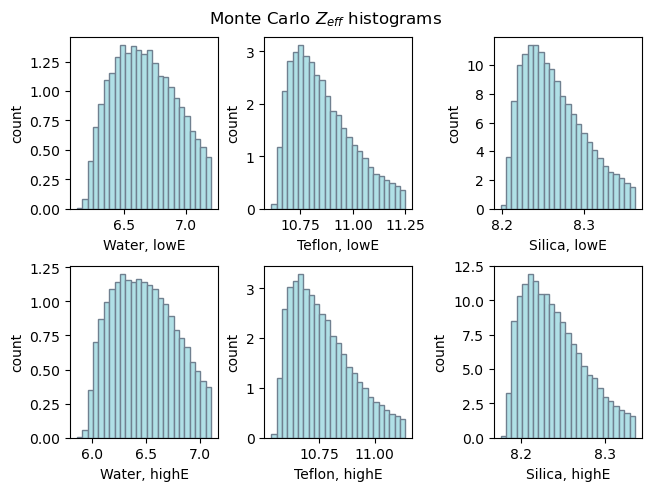

fig1, axs = plt.subplots(2, 3, layout='constrained')
ax1 = axs[0][0], axs[0][1], axs[0][2]
ax2 = axs[1][0], axs[1][1], axs[1][2]
fig1.suptitle('Monte Carlo $Z_{eff}$ histograms')
for ax, coef, mode in (zip((ax1, ax2),
(dectgroup.lowE_inversion_coefficients,
dectgroup.highE_inversion_coefficients),
('low', 'high'))):
for k, xlb in enumerate(('Water', 'Teflon', 'Silica')):
ax[k].hist(coef[f'Z_{k+1}'],
bins=25,
density=True,
facecolor='powderblue',
edgecolor='slategrey',
label='Hist.')
ax[k].set_xlabel(f'{xlb}, {mode}E')
ax[k].set_ylabel('count')
[194]:

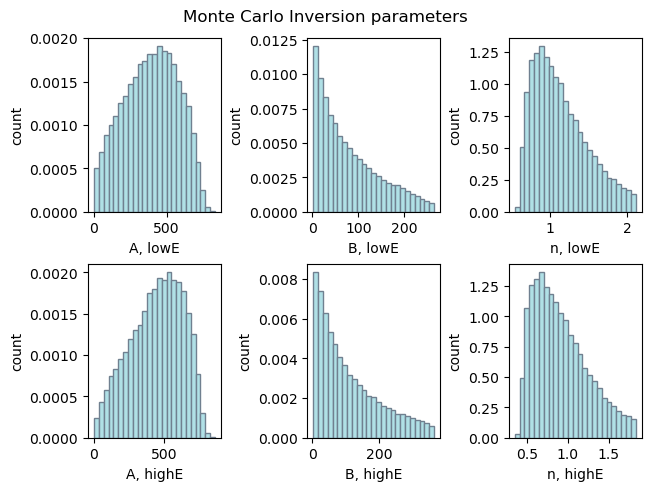

fig1, axs = plt.subplots(2, 3, layout='constrained')
ax1 = axs[0][0], axs[0][1], axs[0][2]
ax2 = axs[1][0], axs[1][1], axs[1][2]
fig1.suptitle('Monte Carlo Inversion parameters')
for ax, coef, mode in (zip((ax1, ax2),
(dectgroup.lowE_inversion_coefficients,
dectgroup.highE_inversion_coefficients),
('low', 'high'))):
for k, xlb in enumerate(('A', 'B', 'n')):
ax[k].hist(coef[f'{xlb}'],
bins=25,
density=True,
facecolor='powderblue',
edgecolor='slategrey',
label='Hist.')
ax[k].set_xlabel(f'{xlb}, {mode}E')
ax[k].set_ylabel('count')
Run the Monte Carlo inversion#
Once we are satisfied with these inversion parameters, we are ready to run the full inversion. For this, we only need to execute the following code snippet in a parallel environment:
import rockverse as rv
dectgroup = rv.open(r'/path/to/dual_energy_ct/C04B21')
dectgroup.run()
Remember: we are utilizing Monte Carlo in the Digital Rock universe! This process is computationally intensive and is meant to be run in a high-performance computing environment, such as a GPU-enabled machine or a handful of nodes in a CPU cluster. If you just want to test the inversion, you can go back to the mask definition and reduce the cylinder length to allow the code to work only on a tiny part of the whole image.
After completion, you will have access to the Monte Carlo results through the following new voxel images as attributes of dectgroup:
rho_min: Voxel image with the minimum electron density per voxel.rho_p25: Voxel image with the the first quartile for the electron density per voxel.rho_p50: Voxel image with the the median values for the electron density per voxel.rho_p75: Voxel image with the the third quartile for the electron density per voxel.rho_max: Voxel image with the maximum electron density per voxel.Z_min: Voxel image with the minimum effective atomic number per voxel.Z_p25: Voxel image with the the first quartile for the effective atomic number per voxel.Z_p50: Voxel image with the the median values for the effective atomic number per voxel.Z_p75: Voxel image with the the third quartile for the effective atomic number per voxel.Z_max: Voxel image with the maximum effective atomic number per voxel.valid: Voxel image with the number of valid Monte Carlo results for each voxel.
