Exploring the Orthogonal Viewer#

The Orthogonal Viewer is a convenient tool for quickly visualizing 3D voxel images. In this tutorial, we’ll explore how to use the OrthogonalViewer class. For detailed documentation, see the corresponding API documentation, which includes comprehensive information about available methods and properties.

Throughout this tutorial, you will learn how to visualize orthogonal slices, interact with the data, and customize your visualizations for better insights.

Initial view#

First, let’s open the Bentheimer sandstone data imported before and create a simple instance of the OrthogonalViewer.

[30]:

import rockverse as rv
bentheimer_ct = rv.open('/path/to/imported/Bentheimer/original')
viewer = rv.OrthogonalViewer(image=bentheimer_ct)

[2025-01-09 12:36:09] Histogram Attenuation (min/max): 100%|>>>>>>>>>>| 8/8 [00:00<00:00, 40.32chunk/s]
[2025-01-09 12:36:09] Histogram Attenuation (counting voxels): 100%|>>>>>>>>>>| 8/8 [00:02<00:00,  2.91chunk/s]

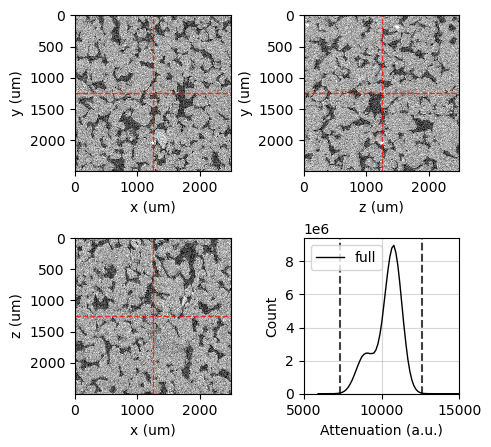

../../../_images/tutorials_digitalrock_orthogonal_viewer_orthogonal_viewer_1_1.png

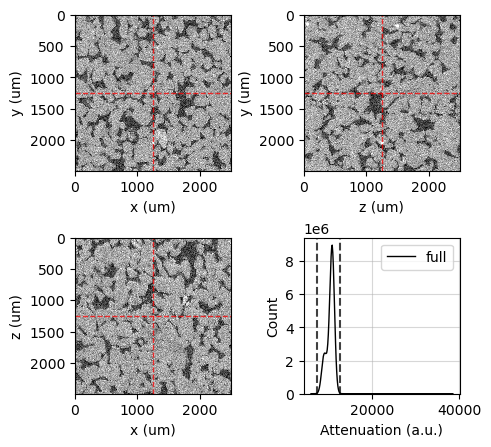

The viewer defaults to grayscale slices crossing the center of the image, with color limits set to span the 99.9% confidence interval calculated from the image histogram. Horizontal and vertical lines in each slice indicate the intersection with the corresponding crossing slices.

Note that labels and axes are automatically built using attributes from the voxel image`, such as field name, voxel length, voxel origin, and voxel unit.

You can access the Matplotlib figure and axes through the corresponding attributes of the OrthogonalViewer,

  • figure

  • ax_xy

  • ax_zy

  • ax_xz

  • ax_histogram

For example, let’s set the x-limits of the histogram using the ax_histogram attribute:

[31]:

viewer.ax_histogram.set_xlim(5000, 15000)
viewer.figure

[31]:
../../../_images/tutorials_digitalrock_orthogonal_viewer_orthogonal_viewer_3_0.png

The reference point can be any point in the image and is used to determine which slice is displayed in the viewer. It can be set by right-clicking with the mouse on any image slice while in interactive mode, allowing for quick adjustments based on user exploration.

Additionally, the reference point can also be set through the ref_point attribute using values in voxel length units.

[32]:

# Print the current reference point to the console
print(f'Current reference point: {viewer.ref_point}')

# Set a new reference point in voxel length units
viewer.ref_point = (500, 1000, 1500)

# Print the updated reference point to confirm the change
print(f'New reference point: {viewer.ref_point}')

# Show the figure in the output
viewer.figure

Current reference point: (1250.0, 1250.0, 1250.0)
New reference point: (500.0, 1000.0, 1500.0)

[32]:

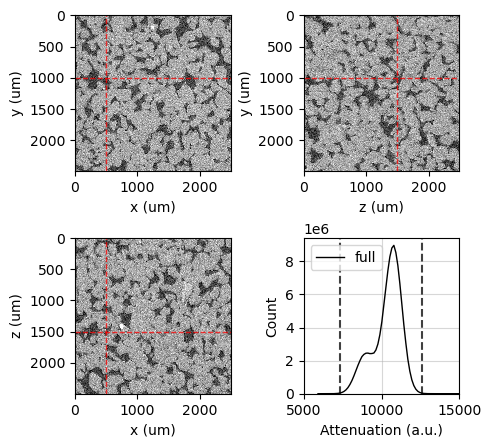

../../../_images/tutorials_digitalrock_orthogonal_viewer_orthogonal_viewer_5_1.png

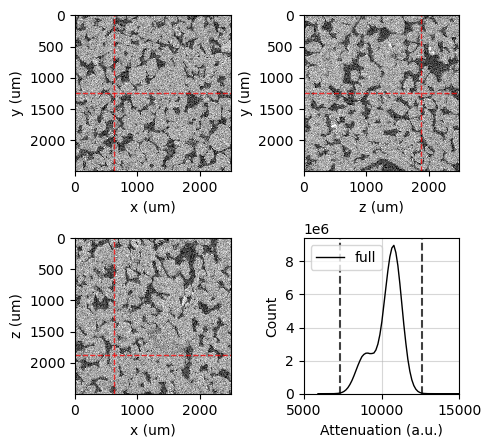

You can also set the reference point using voxel indices. This allows you to specify the reference position in terms of its grid location within the voxel image, which can be useful for precise positioning and navigation through the data.

[33]:

# Print the current reference voxel to the console
print(f'Current reference voxel: {viewer.ref_voxel}')

# Set a new reference voxel using voxel indices (i, j, k)
viewer.ref_voxel = (125, 250, 375)

# Print the updated reference voxel to confirm the change
print(f'New reference voxel: {viewer.ref_voxel}')

# Show the figure in the output
viewer.figure

Current reference voxel: (100, 200, 300)
New reference voxel: (125, 250, 375)

[33]:

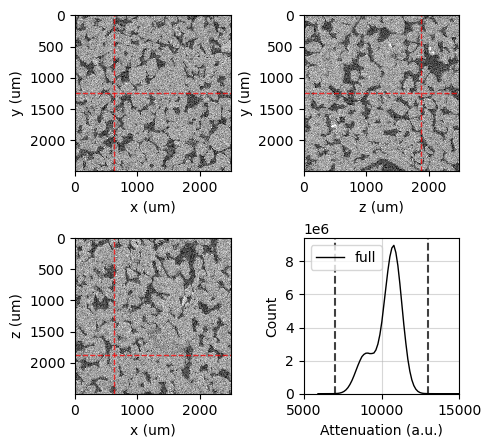

../../../_images/tutorials_digitalrock_orthogonal_viewer_orthogonal_viewer_7_1.png

The image_dict attribute contains the customization options for the image display. This dictionary includes parameters such as colormap, transparency (alpha), and color limits (clim). You can customize these options using the update_image_dict method:

[34]:

# Print the current image display options to the console
print(f'Current options: {viewer.image_dict}')

# Update the image display settings: set colormap to 'Oranges_r' and adjust color limits
viewer.update_image_dict(cmap='Oranges_r', clim=(7000, 13000))

# Print the updated image display options to confirm the change
print(f'New options: {viewer.image_dict}')

# Show the figure in the output
viewer.figure

Current options: {'cmap': 'gray', 'interpolation': 'none', 'clim': array([ 7337.17191789, 12618.50447666])}
New options: {'cmap': 'Oranges_r', 'interpolation': 'none', 'clim': (7000, 13000)}

[34]:

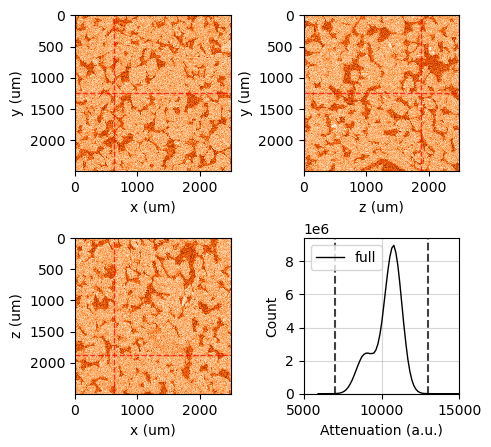

../../../_images/tutorials_digitalrock_orthogonal_viewer_orthogonal_viewer_9_1.png

The clim value can also be set by left and right clicking on the histogram axis in interactive mode. Left click sets the minimum value and right click sets the maximum value. This feature allows for a more dynamic adjustment of the color limits based on your visual inspection of the histogram.

Let’s revert to grayscale to continue our tutorial:

[35]:

viewer.update_image_dict(cmap='gray', clim=(7000, 13000))
viewer.figure

[35]:
../../../_images/tutorials_digitalrock_orthogonal_viewer_orthogonal_viewer_11_0.png

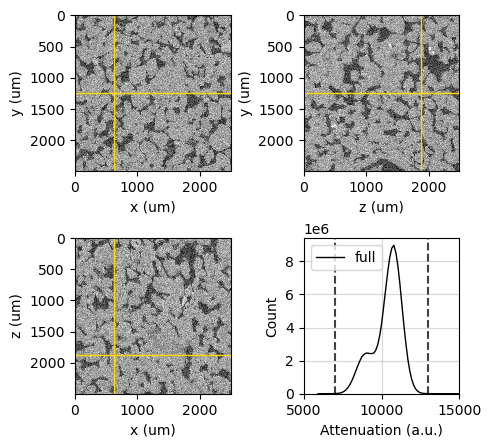

Guide lines can also be hidden or customized by setting attributes and using update methods. The guide lines serve to indicate the intersections between the different slices, enhancing the visual analysis of the data.

You can control the visibility of the guide lines using the show_guide_lines attribute, and customize their appearance through the guide_line_dict attribute.

[36]:

# Enable the visibility of the guide lines
viewer.show_guide_lines = False

# Show the figure in the output
viewer.figure

[36]:
../../../_images/tutorials_digitalrock_orthogonal_viewer_orthogonal_viewer_13_0.png
[37]:

# Enable the visibility of the guide lines
viewer.show_guide_lines = True

# Print the current guide line settings to the console
print(f'Current guide_line_dict: {viewer.guide_line_dict}')

# Update the guide line settings: set to solid gold lines with full opacity
viewer.update_guide_line_dict(linestyle='-', color='gold', alpha=1)

# Print the updated guide line settings to confirm the change
print(f'Updated guide_line_dict: {viewer.guide_line_dict}')

# Show the figure in the output
viewer.figure

Current guide_line_dict: {'linestyle': '--', 'color': 'r', 'alpha': 0.75, 'linewidth': 1}
Updated guide_line_dict: {'linestyle': '-', 'color': 'gold', 'alpha': 1, 'linewidth': 1}

[37]:
../../../_images/tutorials_digitalrock_orthogonal_viewer_orthogonal_viewer_14_1.png

Masks and Regions#

Masks and regions of interest can be applied to the image through the mask and region attributes. Masks are typically used to highlight or exclude certain voxels based on specific criteria, while regions of interest define a spatial area within the image for detailed examination.

Masked voxels and voxels outside the region of interest will be ignored when calculating the histogram, allowing for a more focused analysis of specific areas of the data.

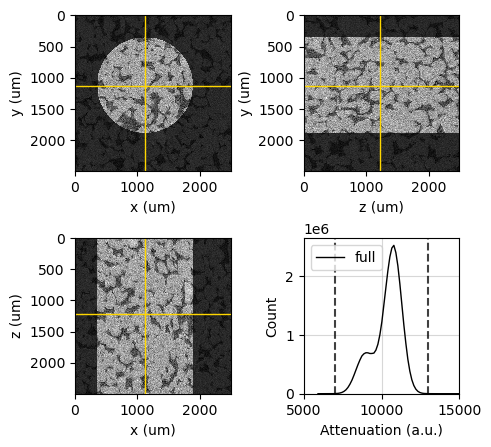

Let’s illustrate a region definition using a cylinder as an example:

[38]:

# Define a cylindrical region of interest
viewer.region = rv.region.Cylinder(p=(1125, 1125, 1225), r=750, v=(0, 0, 1))

# Set the reference point to the center of the defined region
viewer.ref_point = viewer.region.p

# Update the image color limits to focus on a specific range
viewer.update_image_dict(clim=(7000, 13000))

# Set the x-limits of the histogram to focus on a specific range
viewer.ax_histogram.set_xlim(5000, 15000)

# Show the figure in the output
viewer.figure

[2025-01-09 12:36:18] Histogram Attenuation (min/max): 100%|>>>>>>>>>>| 8/8 [00:00<00:00, 11.18chunk/s]
[2025-01-09 12:36:18] Histogram Attenuation (counting voxels): 100%|>>>>>>>>>>| 8/8 [00:01<00:00,  7.24chunk/s]

[38]:

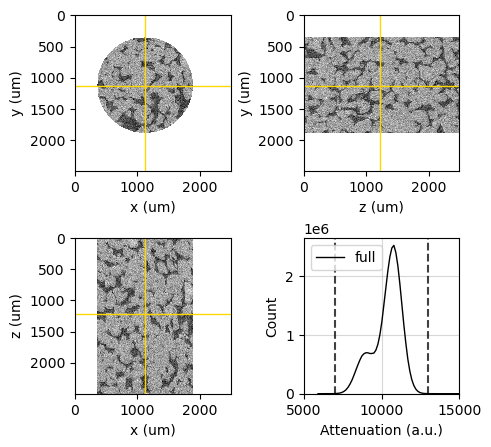

../../../_images/tutorials_digitalrock_orthogonal_viewer_orthogonal_viewer_16_1.png

Masks and regions of interest will be combined into a single image mask. You can customize the mask overlay by adjusting the mask color and transparency (alpha) level, allowing you to highlight the masked areas effectively.

[39]:

viewer.mask_color = 'white'
viewer.mask_alpha = 1
viewer.figure

[39]:
../../../_images/tutorials_digitalrock_orthogonal_viewer_orthogonal_viewer_18_0.png

Set the region or mask to None if you want to remove them from the OrthogonalViewer.

[40]:

viewer.region = None
viewer.update_image_dict(clim=(7000, 13000))
viewer.ax_histogram.set_xlim(5000, 15000)
viewer.figure

[2025-01-09 12:36:22] Histogram Attenuation (min/max): 100%|>>>>>>>>>>| 8/8 [00:00<00:00, 36.96chunk/s]
[2025-01-09 12:36:22] Histogram Attenuation (counting voxels): 100%|>>>>>>>>>>| 8/8 [00:02<00:00,  3.00chunk/s]

[40]:
../../../_images/tutorials_digitalrock_orthogonal_viewer_orthogonal_viewer_20_1.png

Overlaying Segmentation#

Set the segmentation using the segmentation attribute. This action will trigger the recalculation of the histogram and display each individual phase in the histogram plot, with colors matching the segmentation overlay colors.

The segmentation helps to identify and visualize distinct regions within the voxel image, allowing for more targeted analysis of specific features or materials.

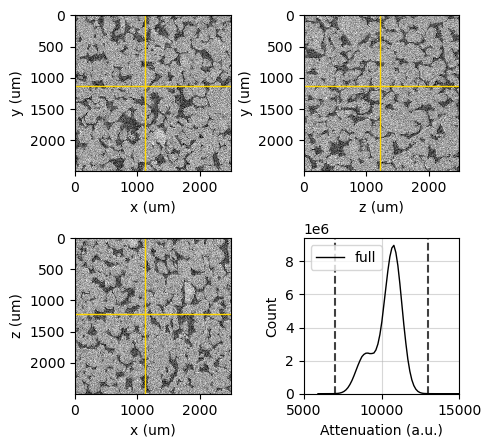

Let’s use the Bentheimer segmentation data imported before.

[41]:

bentheimer_segmentation = rv.open('/path/to/imported/Bentheimer/segmented')
viewer.segmentation = bentheimer_segmentation
viewer.figure

[2025-01-09 12:36:26] Histogram Attenuation (min/max): 100%|>>>>>>>>>>| 8/8 [00:00<00:00, 36.78chunk/s]
[2025-01-09 12:36:26] Histogram Attenuation (reading segmentation): 100%|>>>>>>>>>>| 8/8 [00:00<00:00, 96.33chunk/s]
[2025-01-09 12:36:26] Histogram Attenuation (counting voxels): 100%|>>>>>>>>>>| 8/8 [00:02<00:00,  2.71chunk/s]

[41]:
../../../_images/tutorials_digitalrock_orthogonal_viewer_orthogonal_viewer_22_1.png

Segmentation colors are assigned to each phase by cycling through a list of pre-defined colors. This means that if there are more segmentation phases than available colors, the colors will repeat, providing a visual distinction between the different phases.

You can see the assigned colors by inspecting the segmentation_colormap attribute, which holds the colormap used for the segmentation overlay.

[42]:

viewer.segmentation_colormap

[42]:
from_list
from_list colormap
under
bad
over

Get a list of the predefined colors through the segmentation_colors attribute.

[43]:

viewer.segmentation_colors

[43]:

[(0.12156862745098039, 0.4666666666666667, 0.7058823529411765, 1.0),
 (1.0, 0.4980392156862745, 0.054901960784313725, 1.0),
 (0.17254901960784313, 0.6274509803921569, 0.17254901960784313, 1.0),
 (0.8392156862745098, 0.15294117647058825, 0.1568627450980392, 1.0),
 (0.5803921568627451, 0.403921568627451, 0.7411764705882353, 1.0),
 (0.5490196078431373, 0.33725490196078434, 0.29411764705882354, 1.0),
 (0.8901960784313725, 0.4666666666666667, 0.7607843137254902, 1.0),
 (0.4980392156862745, 0.4980392156862745, 0.4980392156862745, 1.0),
 (0.7372549019607844, 0.7411764705882353, 0.13333333333333333, 1.0),
 (0.09019607843137255, 0.7450980392156863, 0.8117647058823529, 1.0)]

Note again that the length of the color list does not need to match the number of segmentation phases, as the color list will be cycled through. In this example, only the first two colors were used.

You can pass your own list of colors in any format accepted by Matplotlib:

[44]:

viewer.segmentation_colors = ('#339966', 'gold', (0, 0.5, 0.9))
viewer.figure

[44]:
../../../_images/tutorials_digitalrock_orthogonal_viewer_orthogonal_viewer_28_0.png

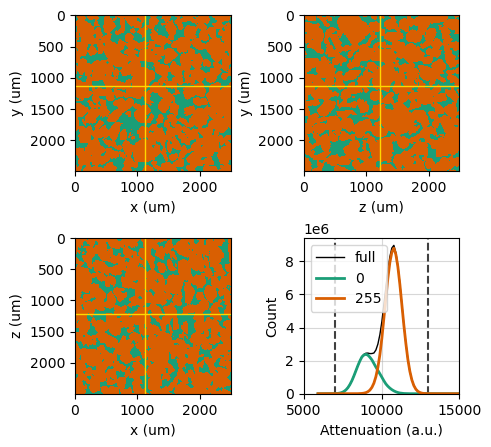

You can also directly use one of Matplotlib’s qualitative colormaps for the segmentation colors:

[45]:

viewer.segmentation_colors = 'Dark2'
viewer.figure

[45]:
../../../_images/tutorials_digitalrock_orthogonal_viewer_orthogonal_viewer_30_0.png

Adjust the segmentation overlay transparency level using the segmentation_alpha attribute. This attribute controls the alpha (transparency) value of the segmentation overlay displayed on the image slices. The value must be a float between 0.0 and 1.0, where 0.0 is fully transparent (invisible) and 1.0 is fully opaque (completely visible). Adjusting the transparency level allows for better visualization of the underlying image data along with the segmented regions.

[46]:

print(f"Old alpha = {viewer.segmentation_alpha}")
viewer.segmentation_alpha = 0.15
print(f"New alpha = {viewer.segmentation_alpha}")
viewer.figure

Old alpha = 0.5
New alpha = 0.15

[46]:
../../../_images/tutorials_digitalrock_orthogonal_viewer_orthogonal_viewer_32_1.png
[47]:

viewer.segmentation_alpha = 0.5
viewer.figure

[47]:
../../../_images/tutorials_digitalrock_orthogonal_viewer_orthogonal_viewer_33_0.png
[48]:

viewer.segmentation_alpha = 1
viewer.figure

[48]:
../../../_images/tutorials_digitalrock_orthogonal_viewer_orthogonal_viewer_34_0.png

Customizing histogram lines#

The OrthogonalViewer class uses a dictionary of Matplotlib Line2D properties to customize the appearance of the histogram lines. These properties allow you to control various aspects of the lines, such as color, line style, line width, and transparency. These properties are specified in the histogram_line_dict attribute:

[49]:

print(f'''
full: {viewer.histogram_line_dict['full']},
phases: {viewer.histogram_line_dict['phases']},
clim: {viewer.histogram_line_dict['clim']},
''')


full: {'color': 'k', 'linewidth': 1, 'linestyle': '-'},
phases: {'linewidth': 2, 'linestyle': '-'},
clim: {'color': 'k', 'linestyle': '--', 'alpha': 0.75},

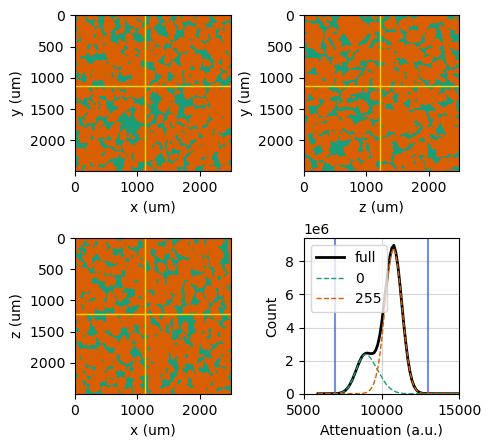

You can change these properties using the update_histogram_line_dict method:

[50]:

viewer.update_histogram_line_dict({
    'full': {'linewidth': 2},
    'phases': {'linewidth': 1, 'linestyle': '--'},
    'clim': {'color': 'royalblue', 'linestyle': '-'},
})
viewer.figure

[50]:
../../../_images/tutorials_digitalrock_orthogonal_viewer_orthogonal_viewer_38_0.png

For individual customization, all the Matplotlib Line2D objects are available as a dictionary in the histogram_lines attribute and can be individually accessed:

[51]:

viewer.histogram_lines

[51]:

{'cmin': <matplotlib.lines.Line2D at 0x28282e037a0>,
 'cmax': <matplotlib.lines.Line2D at 0x282838399a0>,
 'full': <matplotlib.lines.Line2D at 0x28282e03ce0>,
 '0': <matplotlib.lines.Line2D at 0x2828381fb90>,
 '255': <matplotlib.lines.Line2D at 0x2828381ed80>}

[52]:

viewer.histogram_lines['255'].set(linewidth=3)

# If you customize individual lines, you need to
# manually update the legend
viewer.ax_histogram.legend()

viewer.figure

[52]:
../../../_images/tutorials_digitalrock_orthogonal_viewer_orthogonal_viewer_41_0.png

Careful! Overcustomization can lead to ugly results… Let’s rebuild our plot with some reasonable settings to keep things simple.

Remember, you can pass all the customization options right when you create the class instance, which saves you time on histogram recalculations and helps you set everything up nicely from the start.

[53]:

viewer = rv.OrthogonalViewer(image=bentheimer_ct,
                             segmentation=bentheimer_segmentation,
                             ref_point=(1250, 1250, 1250),
                             segmentation_alpha=0.4,
                             guide_line_dict={'color': 'gold', 'alpha': 0.9},
                             histogram_line_dict={'clim': {'color': 'k', 'alpha': 0.5}}
                             )
_ = viewer.ax_histogram.set_xlim(6000, 14000)

[2025-01-09 12:36:34] Histogram Attenuation (min/max): 100%|>>>>>>>>>>| 8/8 [00:00<00:00, 39.46chunk/s]
[2025-01-09 12:36:35] Histogram Attenuation (reading segmentation): 100%|>>>>>>>>>>| 8/8 [00:00<00:00, 117.52chunk/s]
[2025-01-09 12:36:35] Histogram Attenuation (counting voxels): 100%|>>>>>>>>>>| 8/8 [00:02<00:00,  2.71chunk/s]

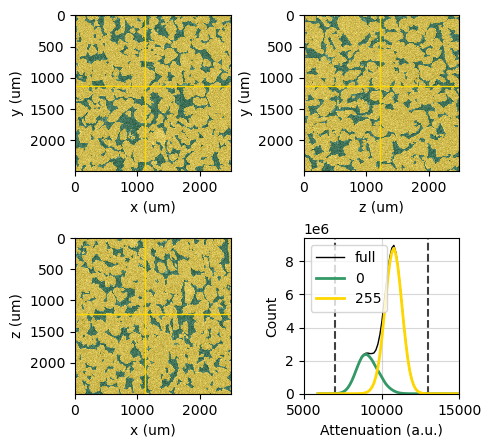

../../../_images/tutorials_digitalrock_orthogonal_viewer_orthogonal_viewer_43_1.png

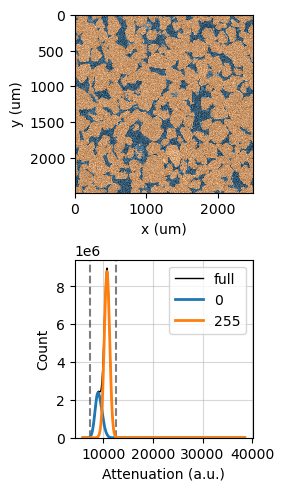

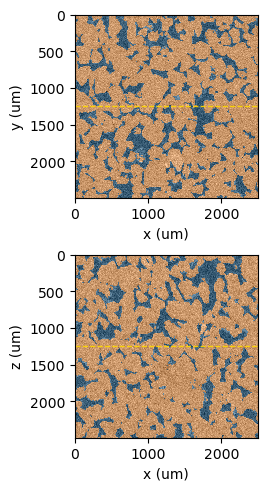

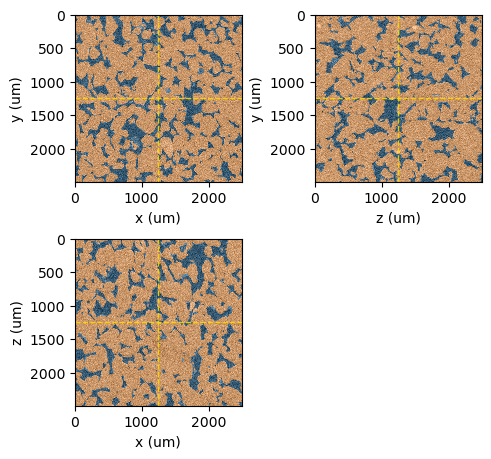

Planes and layout#

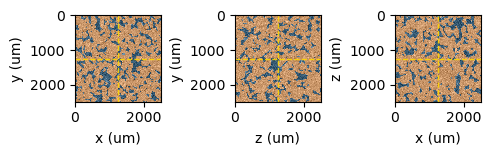

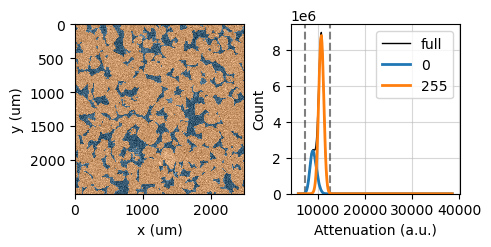

We can choose which planes to show and configure the grid layout through the following attributes:

  • show_xy_plane: Boolean flag to enable or disable the visibility of the XY slice.

  • show_xz_plane: Boolean flag to enable or disable the visibility of the XZ slice.

  • show_zy_plane: Boolean flag to enable or disable the visibility of the ZY slice.

  • show_histogram: Boolean flag to control the visibility of the histogram plot.

  • layout: Defines the arrangement of the components. Options include:

    • ‘2x2’: Arranges the slices and histogram in a 2x2 grid.

    • ‘horizontal’: Places the slices and histogram in a horizontal layout.

    • ‘vertical’: Stacks the slices and histogram vertically.

[54]:

viewer.layout='2x2'
viewer.show_xy_plane = True
viewer.show_xz_plane = True
viewer.show_zy_plane = False
viewer.show_histogram = False
viewer.figure

[54]:
../../../_images/tutorials_digitalrock_orthogonal_viewer_orthogonal_viewer_45_0.png
[55]:

viewer.layout='horizontal'
viewer.show_xy_plane = True
viewer.show_xz_plane = False
viewer.show_zy_plane = False
viewer.show_histogram = True
viewer.figure

[55]:
../../../_images/tutorials_digitalrock_orthogonal_viewer_orthogonal_viewer_46_0.png
[56]:

viewer.layout='vertical'
viewer.show_xy_plane = True
viewer.show_xz_plane = False
viewer.show_zy_plane = False
viewer.show_histogram = True
viewer.figure

[56]:
../../../_images/tutorials_digitalrock_orthogonal_viewer_orthogonal_viewer_47_0.png
[57]:

viewer.layout='2x2'
viewer.show_xy_plane = True
viewer.show_xz_plane = True
viewer.show_zy_plane = True
viewer.show_histogram = False
viewer.figure

[57]:
../../../_images/tutorials_digitalrock_orthogonal_viewer_orthogonal_viewer_48_0.png
[58]:

viewer.layout='horizontal'
viewer.show_xy_plane = True
viewer.show_xz_plane = True
viewer.show_zy_plane = True
viewer.show_histogram = False
viewer.figure

[58]:
../../../_images/tutorials_digitalrock_orthogonal_viewer_orthogonal_viewer_49_0.png

The guide lines will be shown or hidden according to the visible planes.
